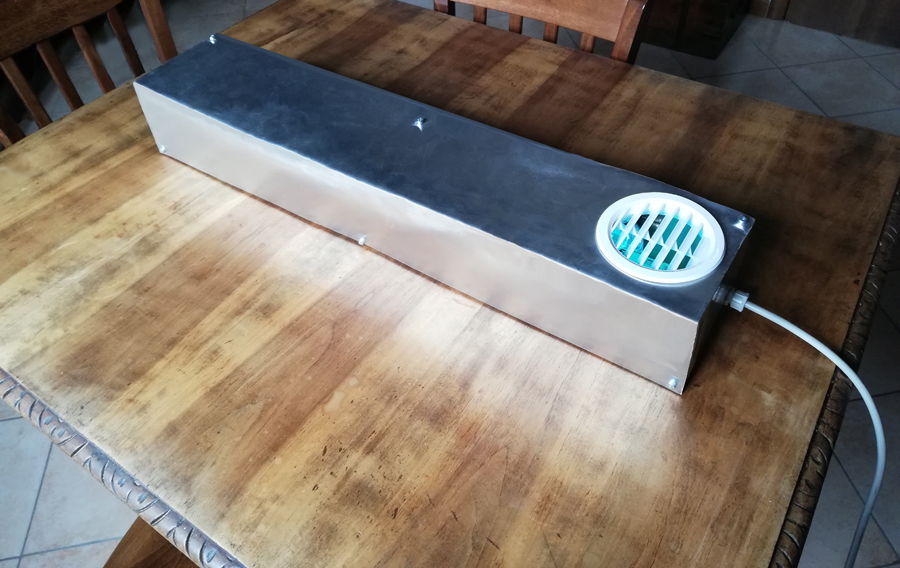

Portable germicidal UV-BAR80 unit for dry disinfection of the atmosphere in the presence of people


Ultraviolet (UV) germicidal purification is a very effective method of cleaning the air of biological pollutants such as bacteria, viruses and fungal spores. Band-C ultraviolet germicidal lamps emit short-wave light radiation of 254 nanometers, a frequency that is highly lethal to viruses, bacteria and other microorganisms.


"It has also been shown (55) that low doses of UV-C radiation are effective against viruses carried by aerosols.", ISS Istituto Superiore della Sanità, Italy, ISS Report - COVID-19 n.25 / 2020 - Interim recommendations on sanitation of non-health facilities in the current COVID-19 emergency: surfaces, interiors and clothing. - ISS COVID-19 Biocides Working Group.


Our sanitizing device uses a technology in use for over 70 years in the world hospital environment, ultraviolet rays in gamma C (UV-C), at dosage intensities suitable for the destruction of COVID19, strictly according to the parameters of many studies in the world and as also confirmed by the joint study of 7 June by the University of Milan and the IRCCS Foundation, published in international medical journals (rif. medRxiv preprint doi: https://doi.org/10.1101/2020.06.05.20123463), in addition to the aforementioned ISS recommendations and advises from the COVID-19 Biocides Working Group in collaboration with the Ministry of Health.


The UV-BAR80 germicidal unit is the most powerful on the market in such a compact space. It uses UV-C lamps produced in Europe and professional components, for the destruction of viruses and bacteria according to the specific international criteria of rapid disinfection of air in the suspected presence of viruses (including influenza, such as Sars2.Cov which can generate COVID-19) and bacteria, allergens and spores, suspended in the air.


The necessary dosages of UV-C rays for the destruction of various pathogens have been known for decades in scientific literature, therefore in the manual the disinfection criteria for many other pathogens target of disinfection are also reported (legionella, mold, hepatitis, typhus, tetanus , salmonella for example).


It should also be remembered that the term disinfection indicates the elimination of the concentration of pathogens in a given volume or surface, also defined as "viral load" or "bacterial load". Therefore, a reduced or absent viral load reduces or prevents the probability of contagion from flu and epidemics of contagious diseases.



Suitable applications:


  • continuous air disinfection of rooms, private homes, professional offices, shops, hotels, B&B accommodation facilities,


  • disinfection of coffe-shops, bars, pubs, restaurants, retail and industrial catering kitchens


  • di fresh and cooked food and objects in general, food production processes


  • processes of toilets, lifts, hoists, garages, auto-workshops


  • of kindergardens, schools, universities, cultural centers, conference and meeting rooms


  • medical offices, waiting rooms, rehabilitation rooms, funeral services


  • social welfare residences, hospitals, public reception areas, wards, delivery room


  • gyms, changing rooms, discos, dance halls, boxes, motorsport workshops, boats, yachts, campers


  • buses, subways, trains, trucks, auto-repair shops






Temporary vertical / horizontal positioning, fixed suspended from the wall or ceiling


Zero ozone emissions


Power cable 5 mt


L = 780 x D = 140 x H = 110













However please:


Ask for prices, services and other information on SPRAYTECS products not yet described in detail on this page, but required in your sector.


Communicate with SPRAYTECS about doubts or clarifications on dimensions,  information used in your applications, in order to receive technical support in your purchase decisions.


The construction materials of the SPRAYTECS products and components used must be fully compatible with the chemical composition of the fluids used in your production processes, check the data sheets in this site.


Contact SPRAYTECS regarding specificities and doubts regarding critical aspects in your applications.
