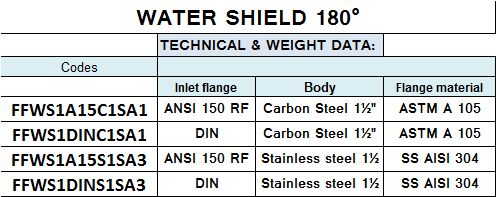

Technical construction data

Materials

- Body: Carbon steel - Stainless steel  AISI 304

- Inlet Flange: ANSI 150 RF – UNI/DIN

- Flanges Material:  ASTM A 105 or AISI 304

- Body size:  1½”

- Diffuser material: AISI 304

Painting cicle (in the carbon steel version)

 - First coat: Epoxy primer

- Second coat: Polyurethanic enamel RAL 3000

- Third coat: Polyurethanic enamel RAL 3000

Ask us for price, performances and other information about products present here.

Check with SPRAYTECS for critical dimension, pressure, capacity, fluids in your applications, in order to receive support in your decision.

Nozzle materials must meet correctly chemical composition of fluids in your processes, always remember it.

Spray angle performance varies with pressure. Contact SPRAYTECS for specific data on your critical applications.
