This class of air nozzles is expressly designed for the various Air Blowing applications using compressed air or technical gas fluids for cooling and manufacturing operations and are available in many different versions about performances, thread sizes, materials, air flow-rates, regulations compliant as EC n.1935/2004, EU 10/2011, FDA reg.21 CFR, OSHA, DIN EN ISO 9612.
The Spraytecs Air Nozzles BW series for compressed air are specialized in CNC machine tools cooling, to substitute (or to add a great improving to liquid cooling system)) with a concentrate compressed air cooling system the existent liquid cooling system during high temperatures reached during the machining operations, as milling, cutting, drilling, surfaces grinding, tools sharpening, routing and tires grinding.
Spraytecs main design target is the constant increasing of tool life due to the lower working temperatures and a low quantity of compressed air to do it, with as direct consequence a save of money in the CNC machine tool total working costs on yearly basis.
Compressed air pressures in the range 2 bar/8 bar (30 psi/120 psi) give great cooling results with the right installation nozzle set solutions, in the larger number of machine tools.
There are several advantages to consider the substitution of the existing liquid cooling wit a compressed air cooling in your CNC machines:
- all machined parts are absolutely clean and dry when come out your machine
- no need, no costs for machined and human operations to clean and dry the just manufactured parts, therefore they are immediately available to be packaged and shipped
- two big tools manufacturers declares that CNC air cooling means save 15% manufacturing global costs
- no dirt, bad smell and corrosive action in the CNC, machined materials, ground, walls, clothes
- no spaces, recipients, dedicated machines to manage and stock new and exhaust coolants
- no dangerous vapors, fumes or coolant contacts with operators, improving work conditions
- more value for your cleaned scraps/chips amount when you will sale it
- no risks and production delays/damages for cooling system default, because there are no parts with possible wearing
- no toxicity in coolant fluid, no water needed, air is an environment friendly solution
- high energy to extract out the chips from the way of the machine tool cutter
- focused compressed air to eliminate the Shock Cooling micro-crackings generated by water thermal inertial effect in carbide tools, extension of cutting tools life
- small amount of compressed air to obtain great cooling results
However Spraytecs suggest that every machine tool must be tested on what kind of materials, machine tools and machining operation can be performed at the best with air cooling or other cooling solutions.
Materials and production are all strictly of West Europe origin, with certificates available. In every nozzle are below shown what standard rules meet.
BW18A - Air Impact Nozzles
These general purpose cooling nozzles are suitable where a concentrate air beam must hit with energy a small area. Typical application is the cooling of very hot materials surfaces, vanes and holes, as metal alloys, aluminium, magnesium alloys, etc.
These air nozzles have a low air consumption, and meet the EU Machine directive, the OSHA maximum allowable noise exposure standard 29 CFR 1910.95 (a) and are suitable for hard working environments with high temperatures.
Moreover are available suitable accessories as nipples and flexible-pipes of different lengths to fit at the best your cooling direction needs.
The picture on the left shows the spray pattern of these nozzles
BWM4A13H - Air Impact Micro-Nozzles
These cooling micro nozzles are suitable where a concentrate air beam must hit with energy a small area, but there is a very small space to fit the nozzles, as in the spindle head cooling vanes. Typical application is the cooling of very hot materials surfaces, vanes and holes, as metal alloys, aluminium, magnesium alloys, etc in mechanical manufacturing and robotics.
These air nozzles have a low air consumption, and meet the EU Machine directive, the OSHA maximum allowable noise exposure standard 29 CFR 1910.95 (a) and the safe operation about OSHA standard 1910.242(b).
Their diameter is 4 mm.
Moreover are available suitable accessories as micro-nipples and micro-pipes of different angles and lengths to fit at the best your cooling needs.
The picture on the left shows the spray pattern of these nozzles
Are available also these nozzles:
BWM5A13HMT1 (same features and lenght, but thread is M5)
BWM6A13HMT1 (same features and lenght, but thread is M6)
BWM6A - Air Impact Micro Nozzles
These cooling micro nozzles are suitable where a concentrate air beam must hit with energy a small area, but there is a very small space to fit the nozzles, as in the spindle head cooling vanes. Typical application is the cooling of very hot materials surfaces, vanes and holes, as metal alloys, aluminium, magnesium alloys, etc in mechanical manufacturing and robotics.
These air nozzles have a low air consumption, and meet the EU Machine directive and OSHA maximum allowable noise exposure standard 29 CFR 1910.95 (a).
Their diameter is 6 mm.
Moreover are available suitable accessories as micro-nipples and micro-pipes of different angles and lengths to fit at the best your cooling needs.
The picture on the left shows the spray pattern of these nozzles
Are available other sizes of the above nozzle, in M4 and M5 threads.
The dynamic performances are equal to the M6 thread version.
Here below their data sheets.
The dynamic performances are equal to the M6 thread version. Their diameter is 5 mm.
These air nozzles have a low air consumption, and meet the EU Machine directive and OSHA maximum allowable noise exposure standard 29 CFR 1910.95 (a).
The dynamic performances are equal to the M5 thread version. Their diameter is 4 mm.
These air nozzles have a low air consumption, and meet the EU Machine directive and OSHA maximum allowable noise exposure standard 29 CFR 1910.95 (a).
BWM3A - Air Impact Nano Nozzles
These air cooling nano nozzles are suitable where a concentrate air beam must hit with energy a small area, but there is a very small space to fit the nozzles, as in the spindle head cooling vanes and the air jet must have a particular direction.
Typical application is the cooling of very hot materials surfaces, vanes and holes, as metal alloys, aluminium, magnesium alloys, etc in mechanical manufacturing and robotics.
These nozzles have a diameter dimension of only 3 mm.
These air nozzles have a low air consumption, and meet the EU Machine directive and OSHA maximum allowable noise exposure standard 29 CFR 1910.95 (a).
Moreover are available suitable accessories as nano-nipples and nano-pipes of different angles and lengths to fit at the best your cooling needs.
The picture on the left shows the spray pattern of these nozzles

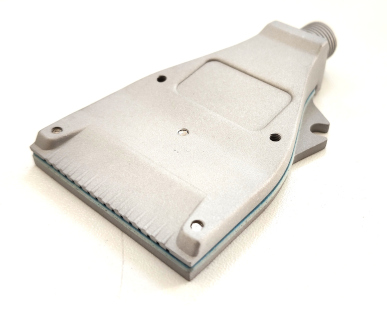

BW18Y - Air Wide Flat Jet Nozzles
These general purpose cooling nozzles are suitable where a wide, tangential flat air jet must hit a wide linear area. Typical application is the cooling/cleaning or the heating/drying of wet surfaces, bottles, recipients, dishes, etc.
Moreover are available suitable accessories as nipples and flexible-pipes of different lengths to fit at the best your cooling direction needs.
The picture on the left shows the spray pattern of these nozzles
PI - Threaded Micro-Pipes
The Spraytecs Threaded MicroPipes are designed to fit the micro-nozzles and nano-nozzles in very small spaces in all machine processing contexts, from CN machine center cooling of tools from the spindle vanes, to many other precision cooling and displacement action performed with fluids.
Moreover also your R&D department could find a useful elementary component for their prototyping needs.
Our MicroPipes are available in different lenghts, thread sizes, materials, angles.
Here below data sheet of the Spraytecs Micro-Pipes for design support.
PIM5MM4F25T130 PIM5MM4F30T1 PIM5MM4F45T1
The MicroPipes are available on other materials on request.
Here below a Micro-Pipe is mounted with a Micro-Air Nozzle to reach a deep cavity in an industry process:
Micro-Pipe thread is M5, but M6 is the nipple thread on flexible pipe, therefore a Spraytecs nipple reduction M5 Female to M6 Male is shown.
Ask us for price, materials, dimensions, performances and other information about these products.
Check with SPRAYTECS for critical dimension, pressure, capacity, fluids in your applications, in order to receive support in your decision.
Nozzle materials must meet correctly chemical composition of fluids in your processes, always remember it.
Contact SPRAYTECS for specific data on your critical applications.
