Full cone nozzle

A wide list of SPRAYTECS full cone nozzles is shown on these pages, which are used in the majority of standard industrial processes.

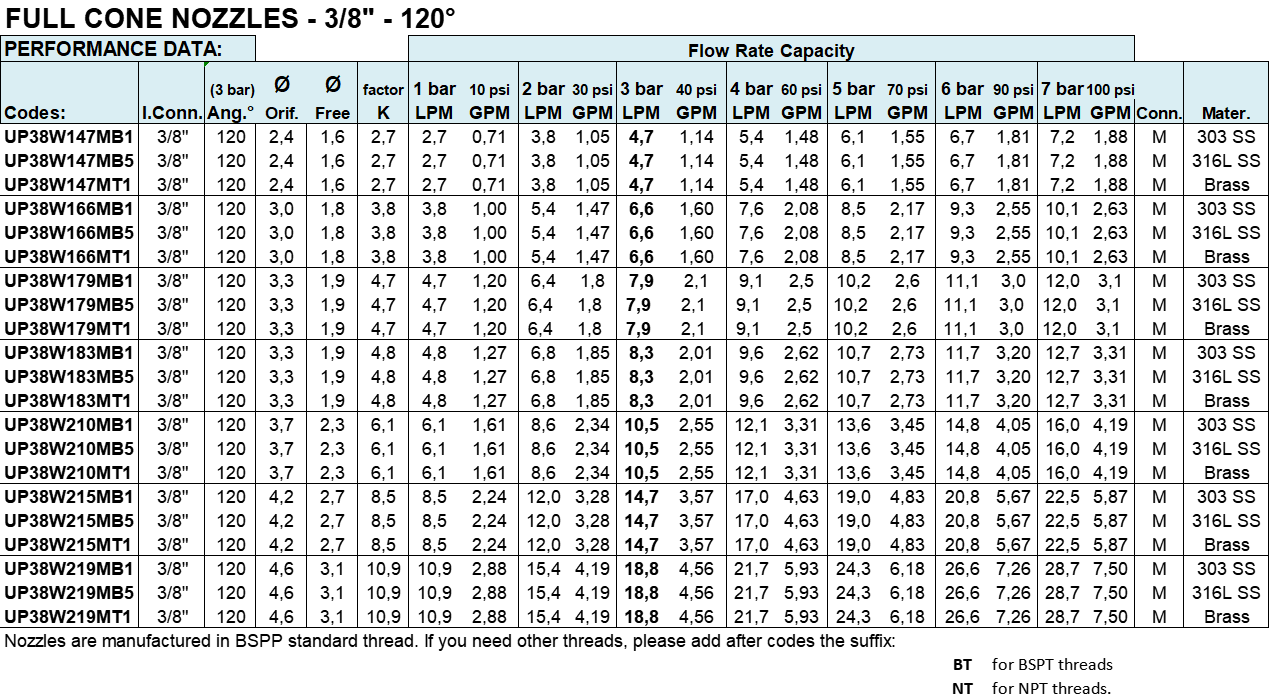

In order to assist your choice of nozzle, we show you our full cone nozzle type codes and for each type we provide some general indications about the nozzle style, dimensions, performances data, special features, spray pattern and specific applications where it might be used.





Full cone nozzles are normally delivered in brass or AISI 316L Stainless steel, but a wide choice of other materials like Teflon, PVC, Polypropylene can be supplied on request and adequate quantities.




These Full Cone nozzles have a wide range of applications, an efficient internal project and a compact dimension, a fact that may be important in your design needs.









 Click on the right image to see a Spraytecs full cone nozzle at work:











Check with SPRAYTECS for critical dimension, pressure, capacity, fluids in your applications.





Nozzle materials must meet correctly chemical composition of fluids in your processes.





Spray angle performance varies with pressure. Contact SPRAYTECS for specific data on your critical applications.





Ask us for price about nozzles of size or material not present in this list, but similar those listed.



 Cono pieno            The picture on the left shows the spray pattern of these nozzles
